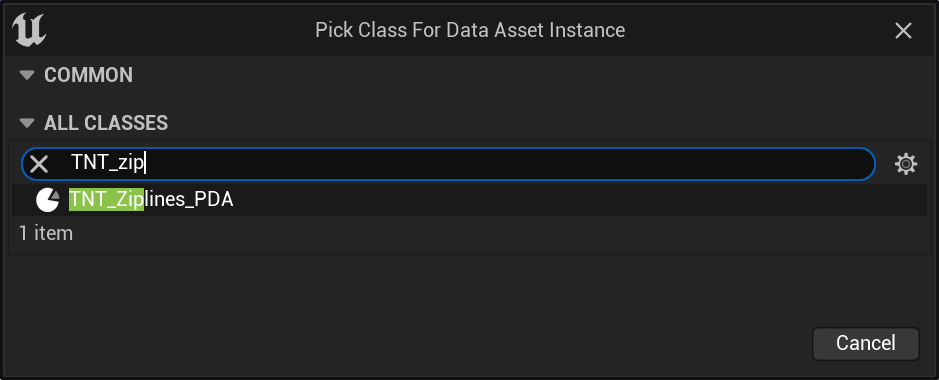

1、Create a data asset and select TNT Ziplines PDA

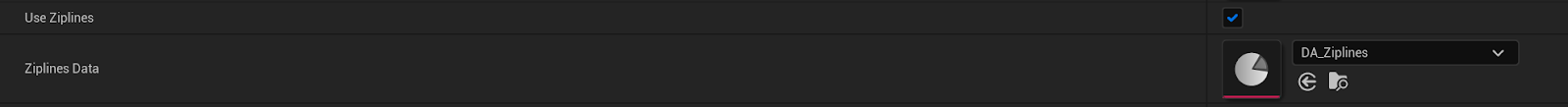

2.Specify the newly created ziplines data asset in the TNT FLS Component Status PDA

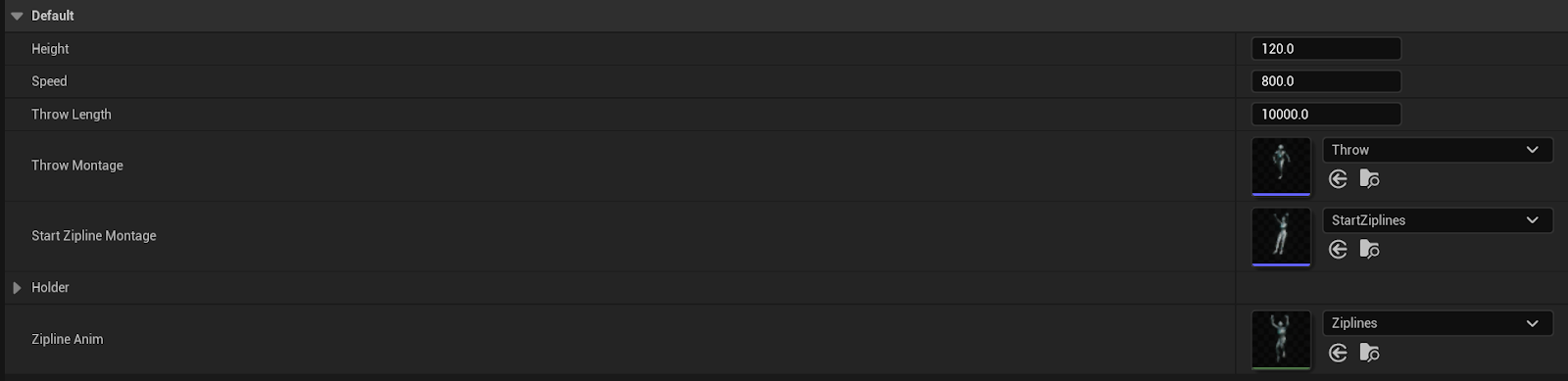

3、Configure the required data in the data asset
Height:Character height position
Speed:Movement speed
Throw Length:Maximum distance to throw rope
Throw Montage:Montage
Start Zipline Montage:Start Zipline Montage

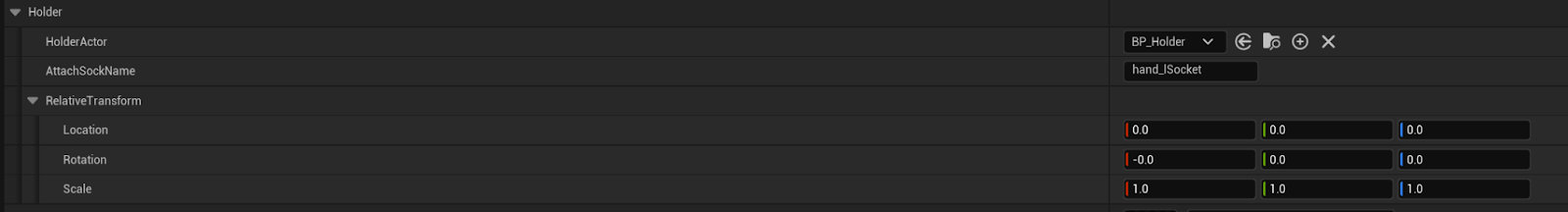

Holder:
HolderActor | Actor held when sliding |
AttachSockName | SockName |
RelativeTransform | AttachToRelativeTransform |
Zipline Anim: Animation sequence during taxiing
4、Set up an animation blueprint
Enter your animation blueprint

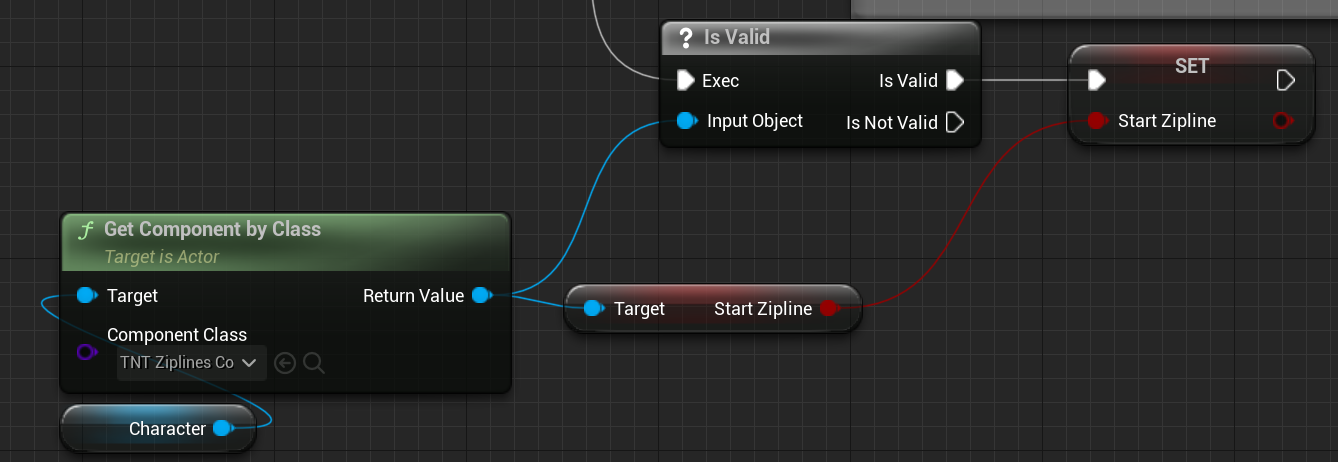

Then get the TNT_ZiplinesComponent and set the Zipline state
Come to the AnimGraph

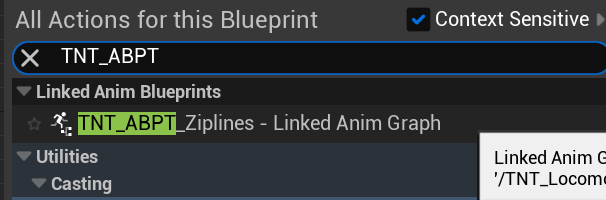

Create linked Anim Graph,select ABPT_TNT_Ziplines
Create blend poses by bool to connect

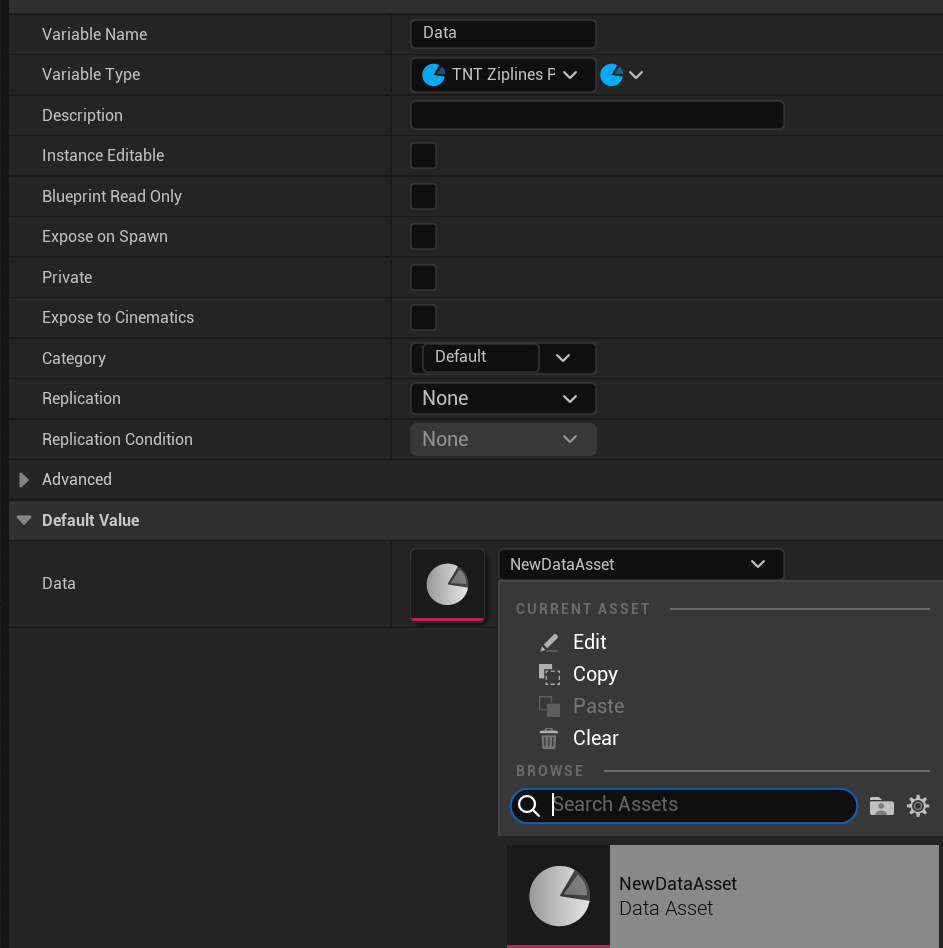

Enter the ABPT_TNT_Ziplines,Set Data Assets
Select the data asset you created
5、Set character blueprint

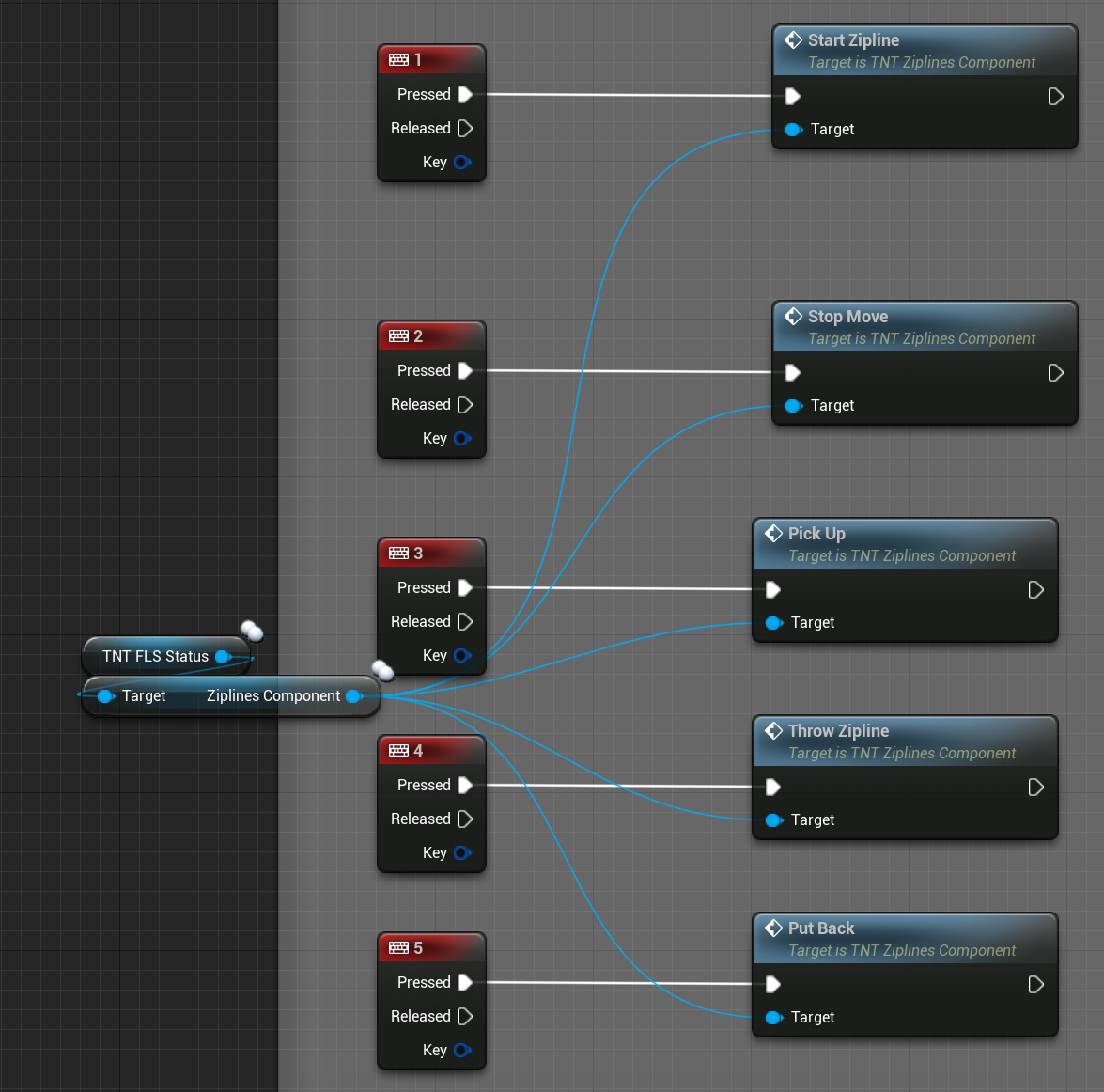

Call the Ziplines function
StartZipline | Start Zipline |
StopMove | StopZipline |
PickUp | Pick up the model |
ThrowZipline | Throw the model |
PutBack | Put back the model |

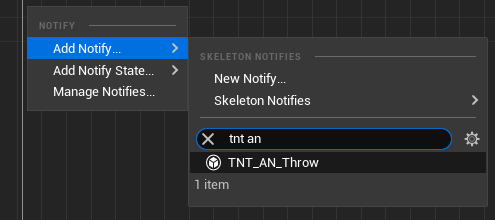

6、Add Anim Notify
Start Throw model
7、Set Holder Actor
Create a new blueprint class that inherits from TNT_BP_Holder
Enter the blueprint

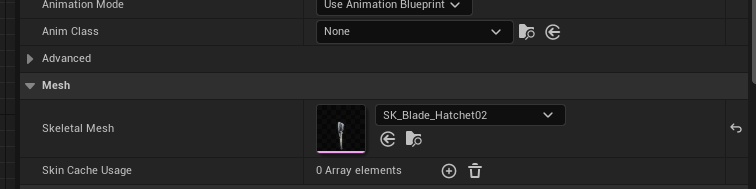

Set up Skeletal mesh
8、Set ThrowActor

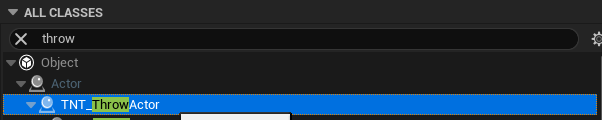

Create a new blueprint class that inherits from TNT_ThrowActor
Enter the blueprint

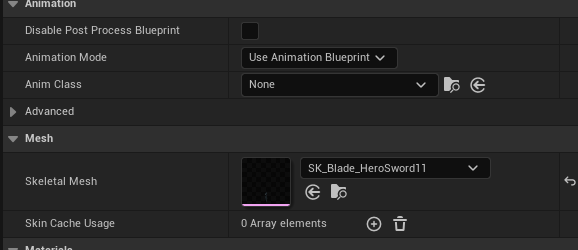

Set up Skeletal mesh
In the detail

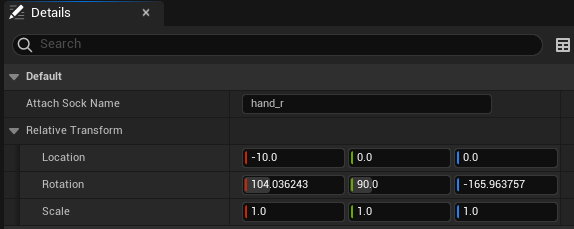

Set Attach Sock Name and Relative Transform
9、Set ThrowZipline

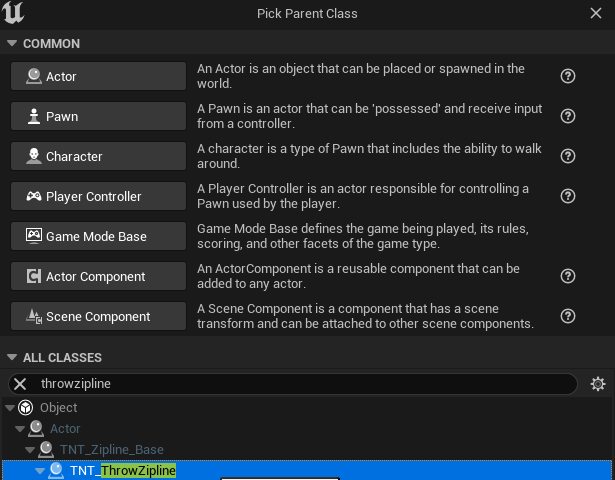

Create a new blueprint class that inherits from TNT_ThrowZipline
Enter the blueprint

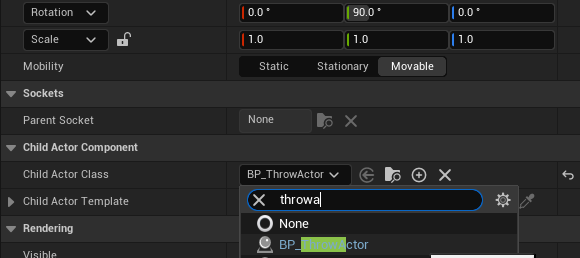

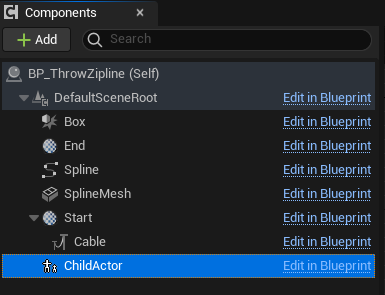

Set ThrowActor class in the details of ChildActor
Select the ThrowActor you created
Drag ThrowZipline you created into the scene
ThrowZipline is ready to use
10、Set FixedPointZipline
Create a new blueprint class that inherits from TNT_FixedPointZipline

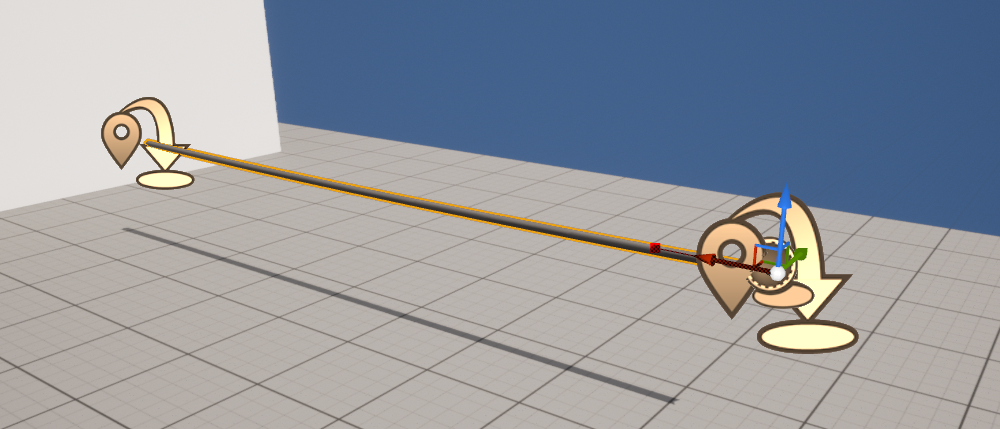

Drag FixedPointZipline you created into the scene
In details, End is the end point
Can move in both directions
