1、Create a data asset and select TNTClimbDataPDA

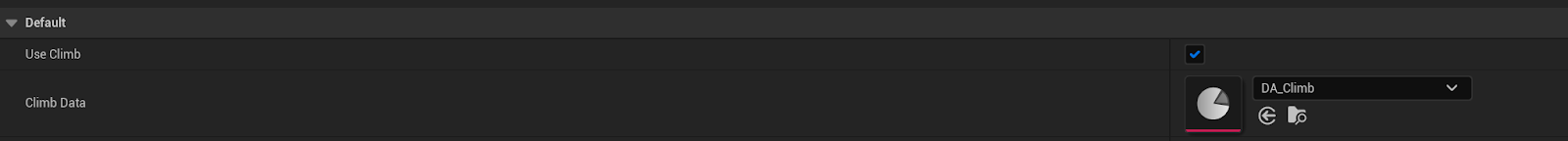

2.Specify the newly created climbing data asset in the TNT FLS Component Status PDA

3、Configure the required data in the data asset

Trace Setting

FreeClimbTraceSetting

Enable

Whether to use free climbing

TraceType

TraceType

ObjectTypeQuery

ObjectTypeQuery

TraceTypeQuery

TraceTypeQuery

LedgeClimbTraceSetting

Enable

Whether to use Ledge Climb

LedgeTag

LedgeTag

TraceType

ObjectTypeQuery

TraceTypeQuery

FreeClimb

StartClimb

EnableStartMontage

Whether to use montage (If not used, the following are invalid)

RandomMontage

Apply random montage

StartClimbHeight

Height of movement during montage

StartClimbMontage

StartClimbMontage

MinimumAltitudeLimit

The higher the value, the lower the wall can be filtered out

ClimbMove

Speed

Climbing speed

ClimbAngleNegative

Climbing angle limit

ClimbAngle

Idle

Animation sequence of climbing

Up

Down

Right

Left

JumpMontage

RandomMontage

Apply random montage

JumpVelocity

JumpVelocity(The faster the speed, the farther the jump distance)

Up

JumpMontage

Down

Right

Left

JumpOffMontage

RandomMontage

Apply random montage

JumpOffVelocity

JumpOffVelocity(The faster the speed, the farther the jump off distance)

Up

JumpOffMontage

Down

Right

Left

ClimbToTop

RandomMontage

Apply random montage

ToTopHeight

Distance to top (The higher the value, the earlier you will climb to the top)

ToTopForward

Distance of moving forward when climbing to the top

ClimbToTopMontage

ClimbToTopMontage

4、Set up an animation blueprint

Enter your animation blueprint

Then get the TNTClimbComponent and set the climbing state

Come to the AnimGraph

Create linked Anim Graph,select ABPT_TNT_Climb

Create blend poses by bool to connect and Create a control rig

In the details of control rig,Set control rig class and select TNTClimbIK

Enter the control rig, Select all bones to delete

Then import your own bones

5、Set character blueprint

Set Try ForwardMovementInput and Try RightMovementInput before Movement input

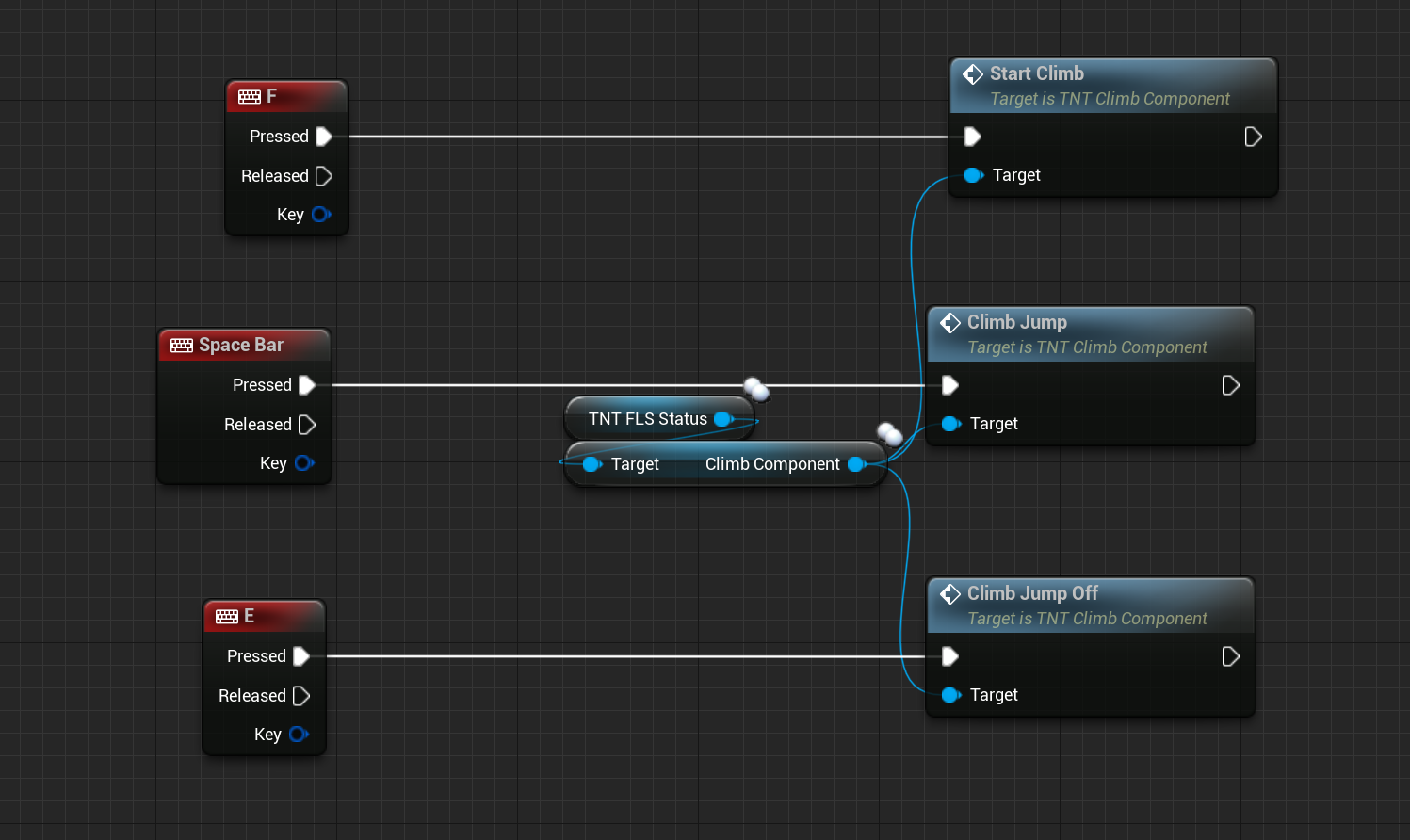

Call the climbing function

StartClimb

The character starts to climb towards the wall

ClimbJump

Jumping during climbing

ClimbJumpOff

Jump off during climbing

6、Add Anim Notify

Notify:

Add Anim Notify for jumpOff:

Trigger this Notify to start moving

Notify State:

Add Anim Notify State for jump:

The starting position is to start moving

Notify the end to complete the jump

Add Anim Notify State for Climbing to top:

Two Notify are required, up and forward

TNT_ANS_ToTopUp is the upward movement

TNT_ANS_ToTopForward is the forward movement

The shorter the Anim Notify State, the faster the movement

7、Start your own climbing system

V2.0 LedgeClimb

1、Come to data assets

TargetHeight

Height and position of characters

TargetForwardDistance

Distance of the figure facing the wall

TargetMaxDistance

Maximum distance of climbing target point

MoveMinLength

MoveMinLength

MoveJumpLeftRightMinLength

Minimum distance of moving jump

TurnBackKey

Jump back key

2、LedgeSearchAnim

Play the animation sequence of looking for Ledge climbing

3、Climbing and jumping in 8 directions

Select which montage to play according to the distance

4、TurnBackMontage

Play the montage of turning and jumping

5、CornerTurn

Play the montage of the inner and outer corners

6、LedgeTopDownAnim

Play an animated montage that jumps over the wall from the top

7、LedgeStartAnim

Play the animation montage of starting Ledge climbing

8、LedgeClimbToTop

RandomMontage

Apply random montage

ToTopHeight

Distance to top (The higher the value, the earlier you will climb to the top)

ToTopForward

Distance of moving forward when climbing to the top

ClimbToTopMontage

ClimbToTopMontage

9、FallDownStartAnim

Animation played by grabbing the Ledge frame when falling

10、Set Anim Notify

Four animation notification states have been added

1.LedgeDownDown

Notification of downward displacement from top to lower wall

2.DownForward

Forward displacement notification from top to lower wall

3.JumpRotation

Rotate character

StartJump

Start climbing and jumping. The longer the notification status is, the slower the speed is

11、Set climbing points

Actor add tags:Climb

Either of the above two can be filled in

12、Complete
